VIF350 Three Phase 0.75~315KW

Author： Browse：2310 Time：2012-05-02

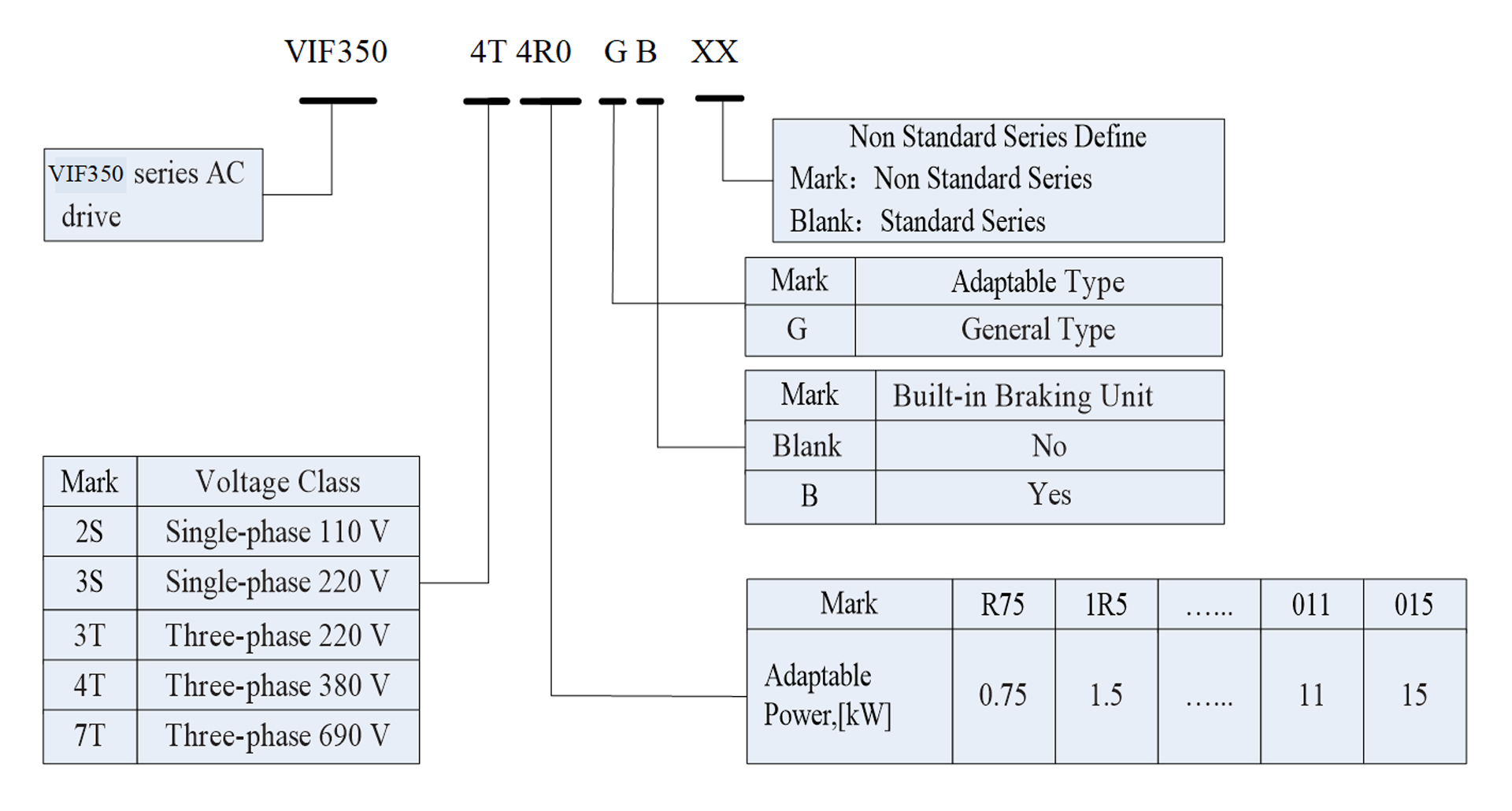

Naming Rules :

   VIF350命名规则 1920.png


3款变频器1920 .jpg

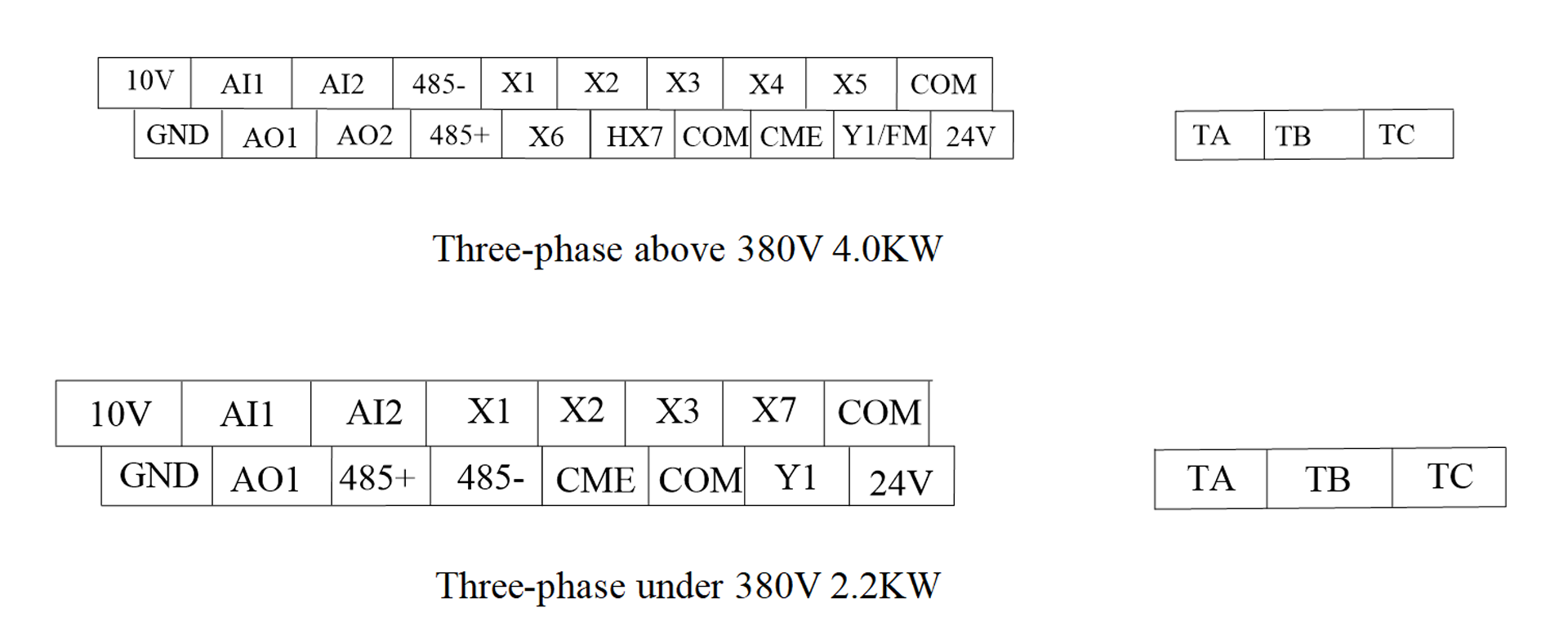

Control circuit terminals and wiring:

VIF350接线端子 1920.png

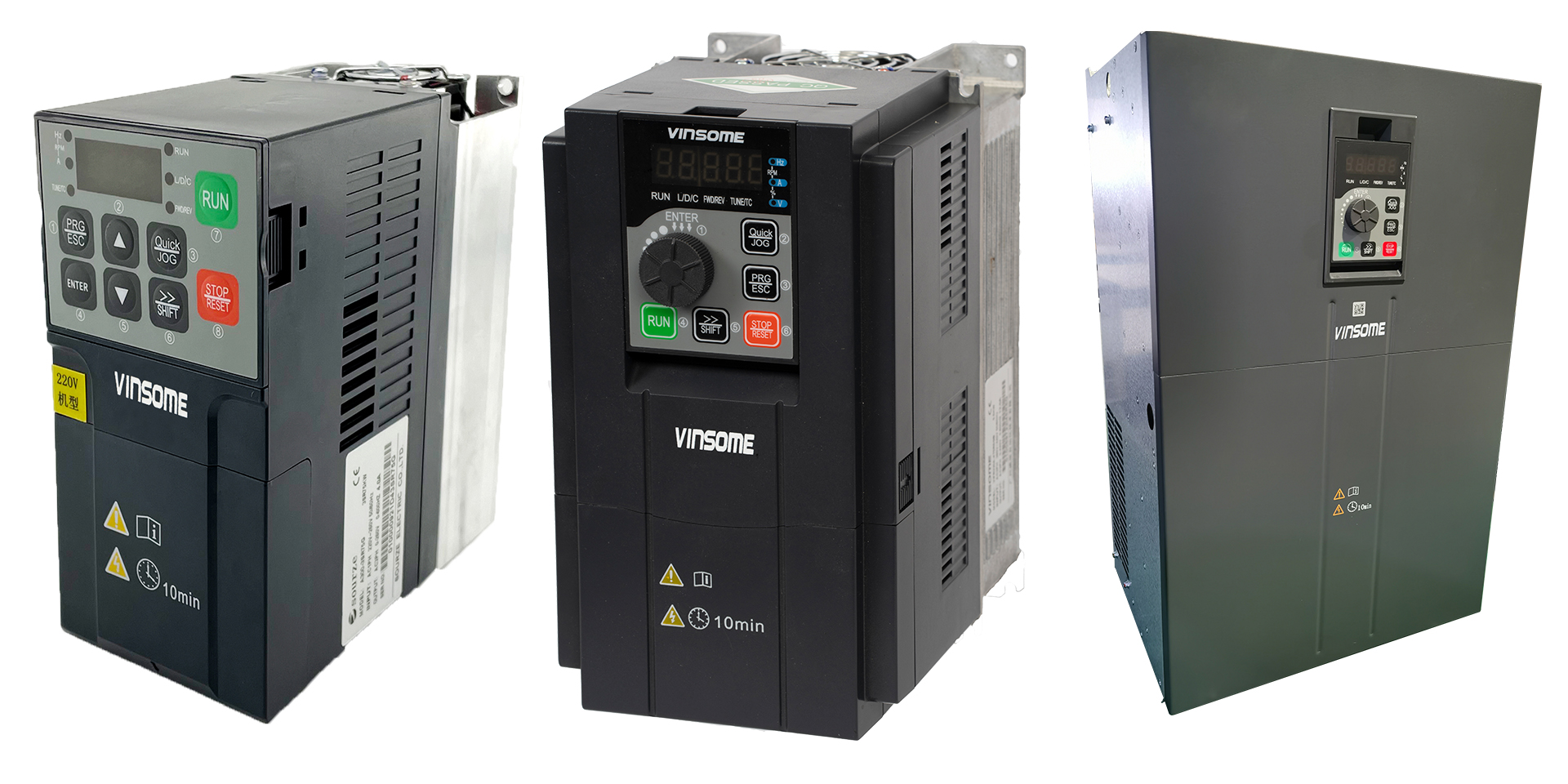

VIF350 Series and  VIF550 Series family:




Inverter 05.png

Inverter 06 1920.png

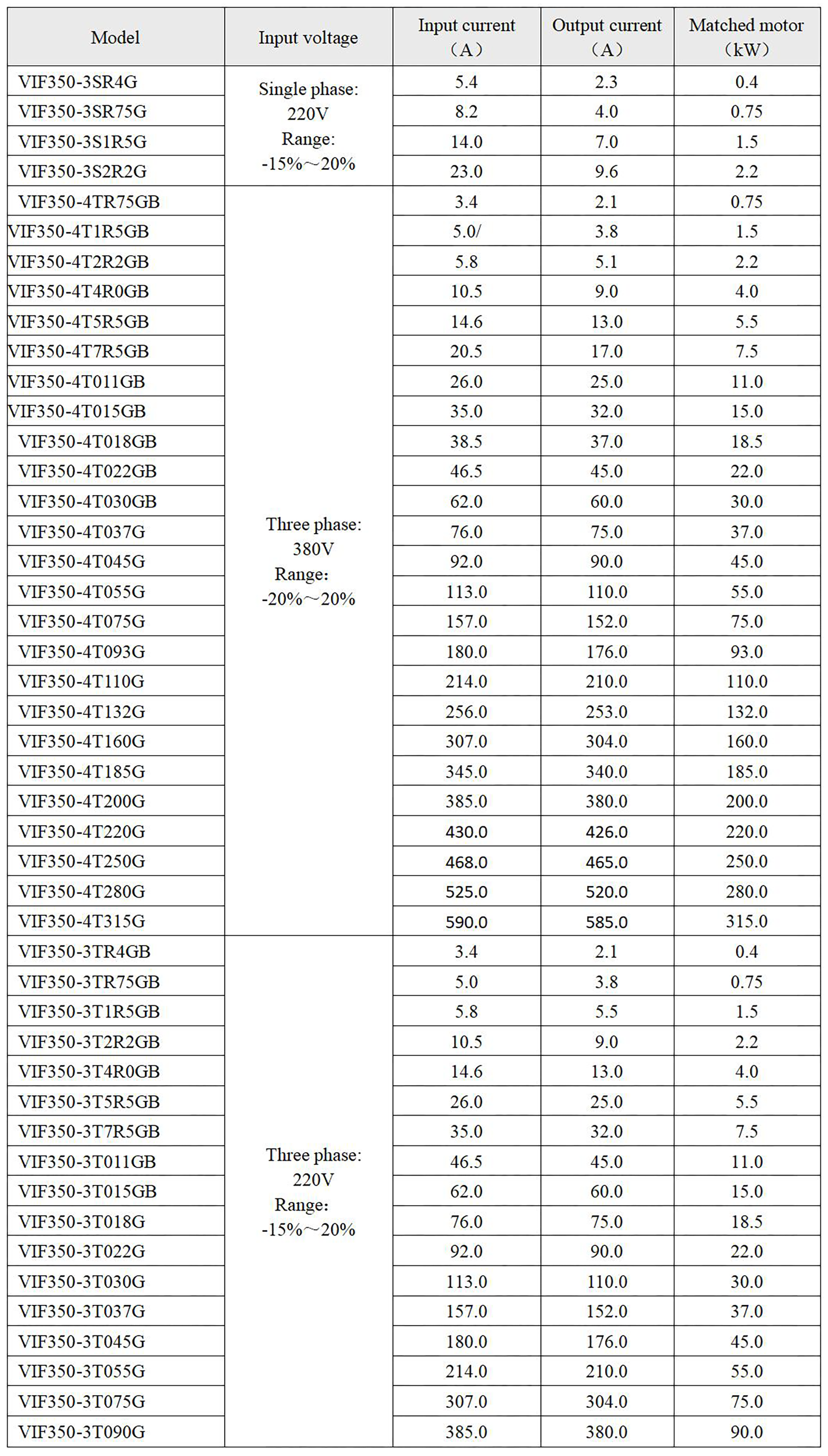

VIF350 Series Vector Inverter  models and technical data:

VIF350 功率和参数表 1920.png

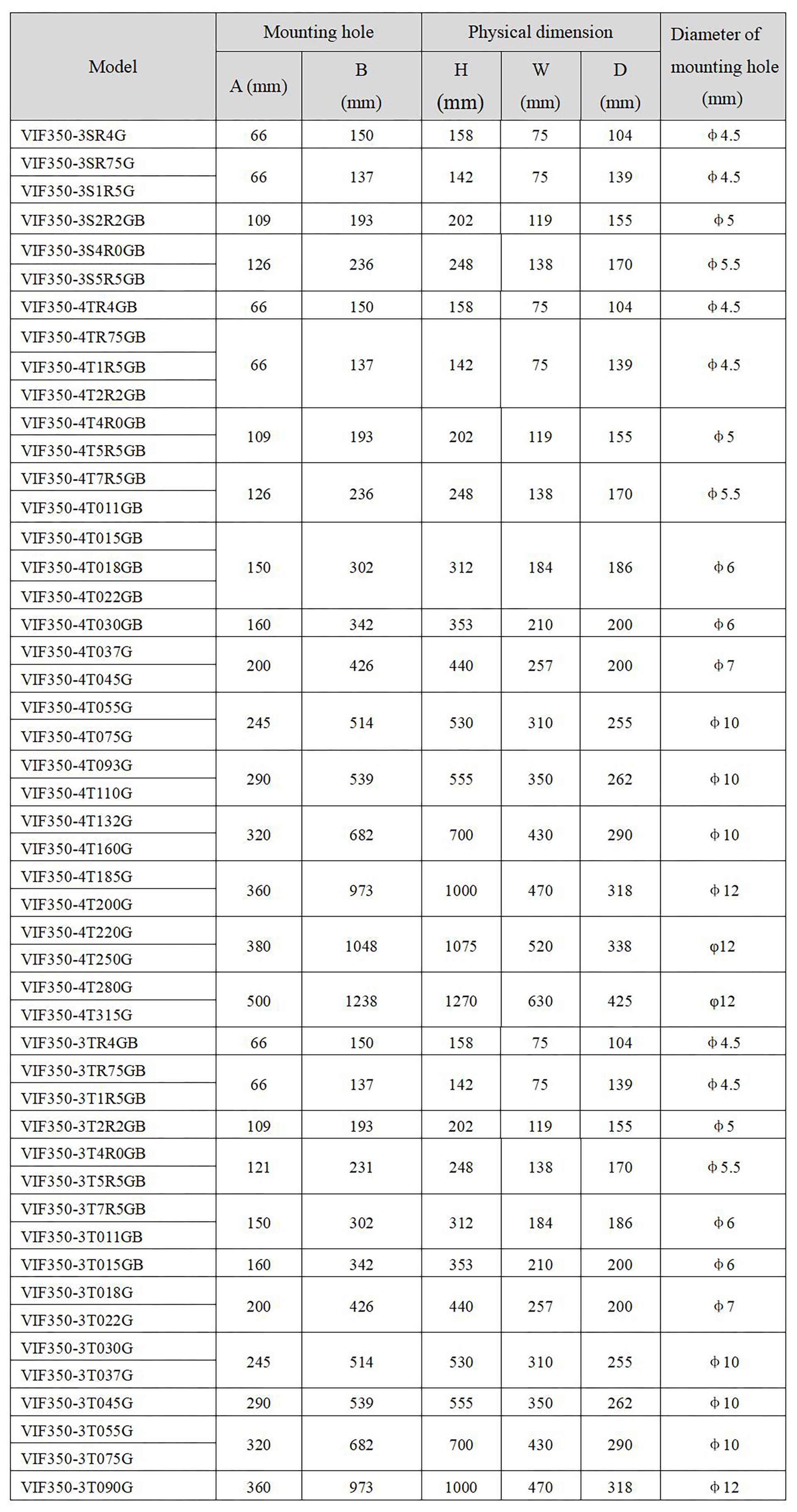

VIF350 Series compact Vector Inverter Mounting Hole Dimensions:

VIF350系列外壳和安装尺寸 1920.png

VIF350 尺寸表 1920.png

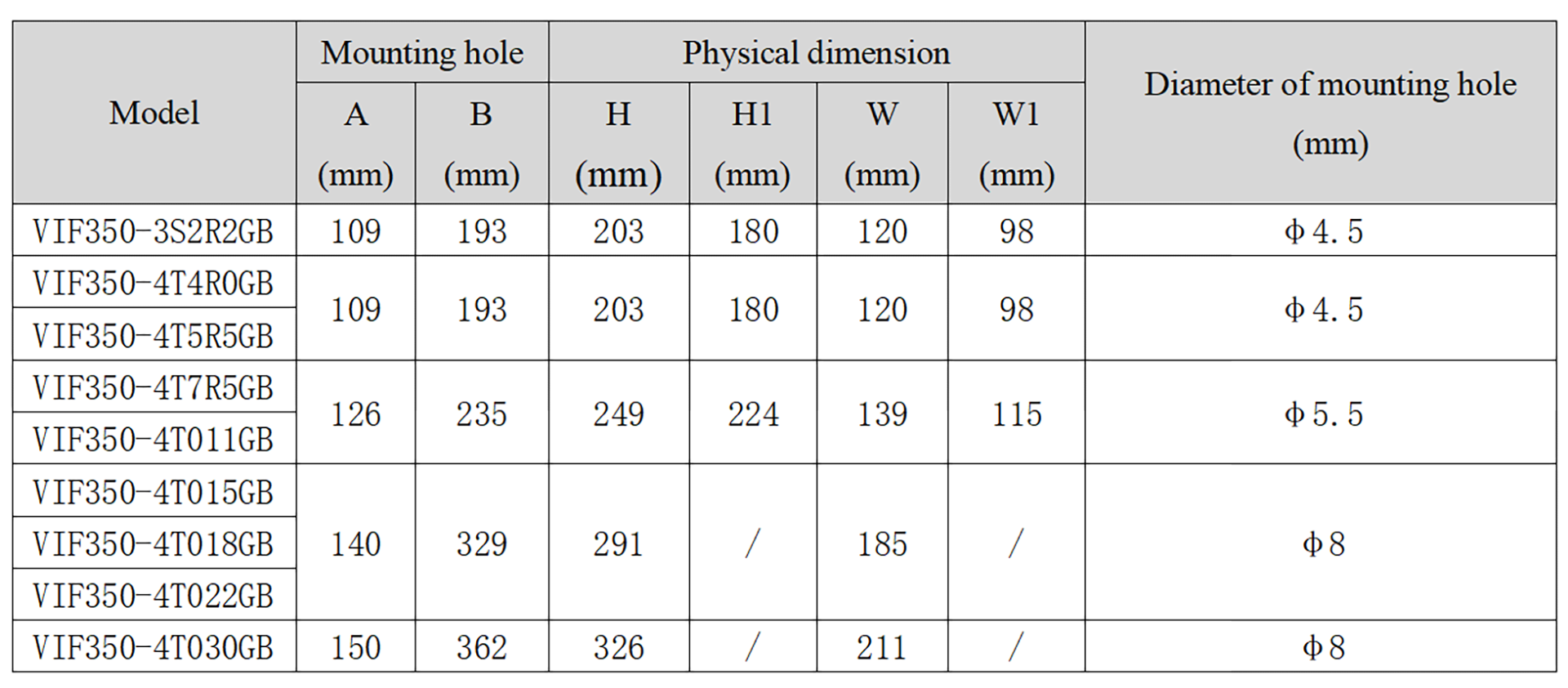

Wall-mounted mode installation dimensions of VIF350 under30KW:

VIF350 壁挂式安装尺寸30KW以下 1920.png

Inverter 08 1920.png

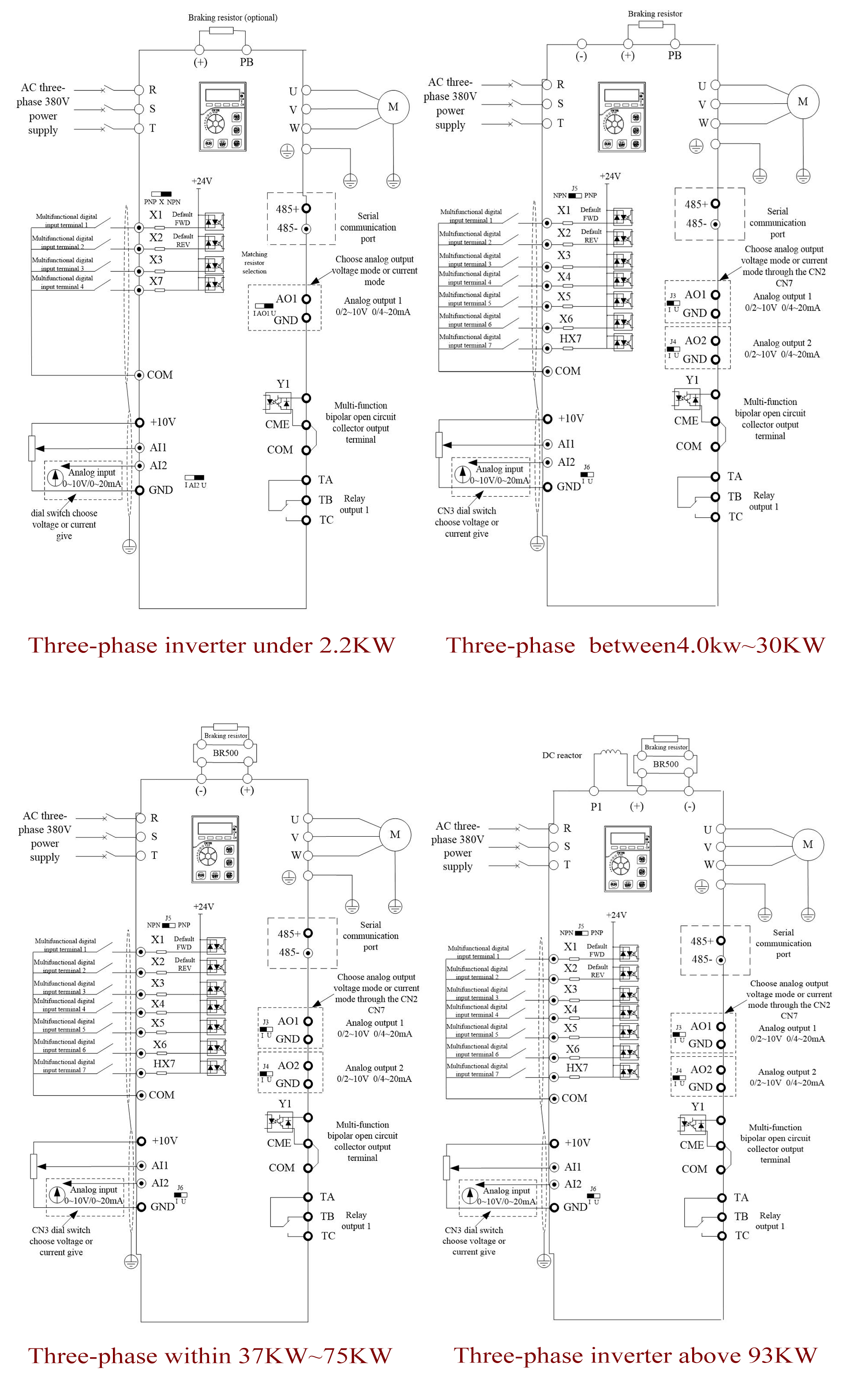

VIF350 Series Typical wiring:

VIF350系列 接线 图 1920.png
