VIF550 Three Phase 0.75~630KW

Author: Browse:1860 Time:2012-03-13

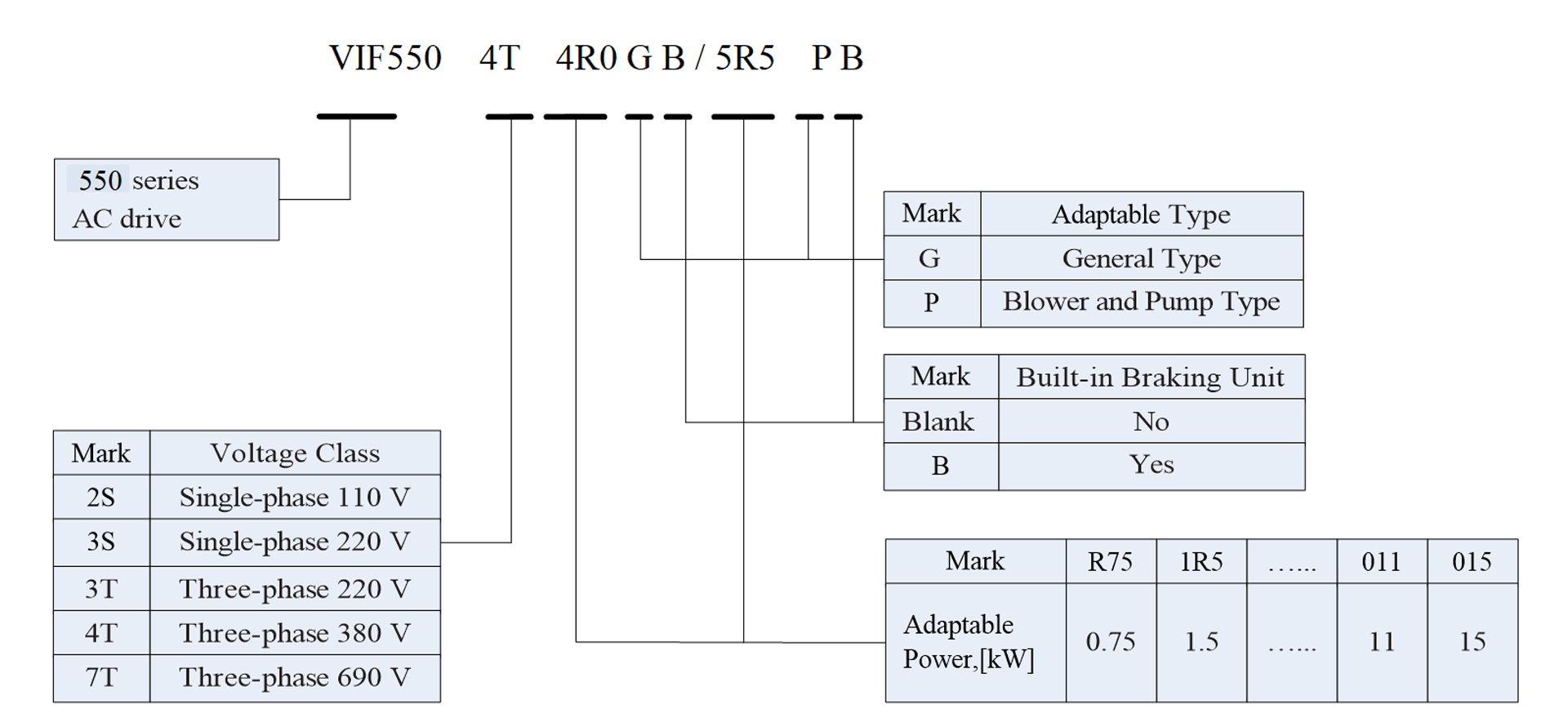

Naming Rules :

   VIF550命名规则 1920.png

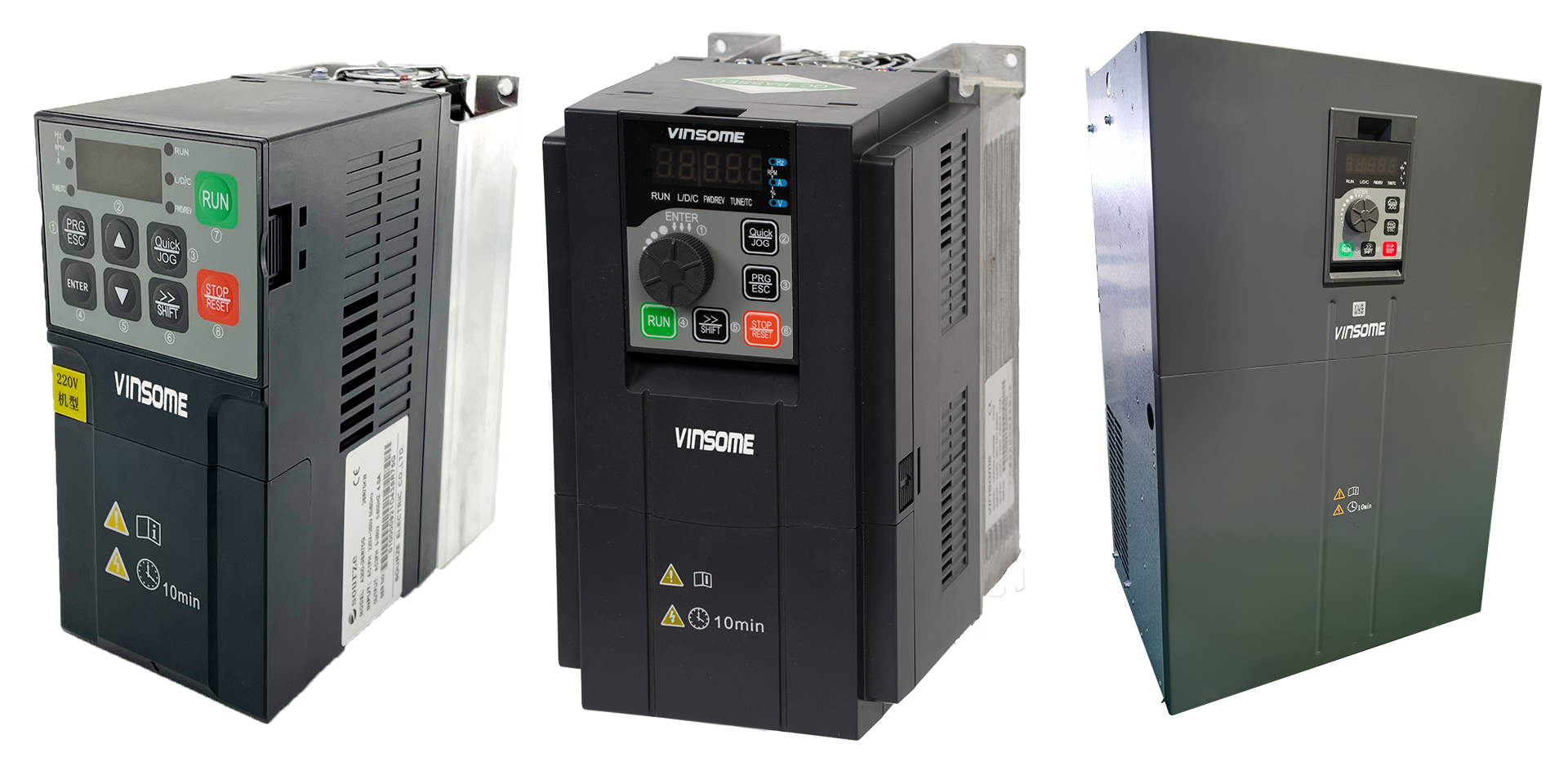

3款变频器1920 .jpg

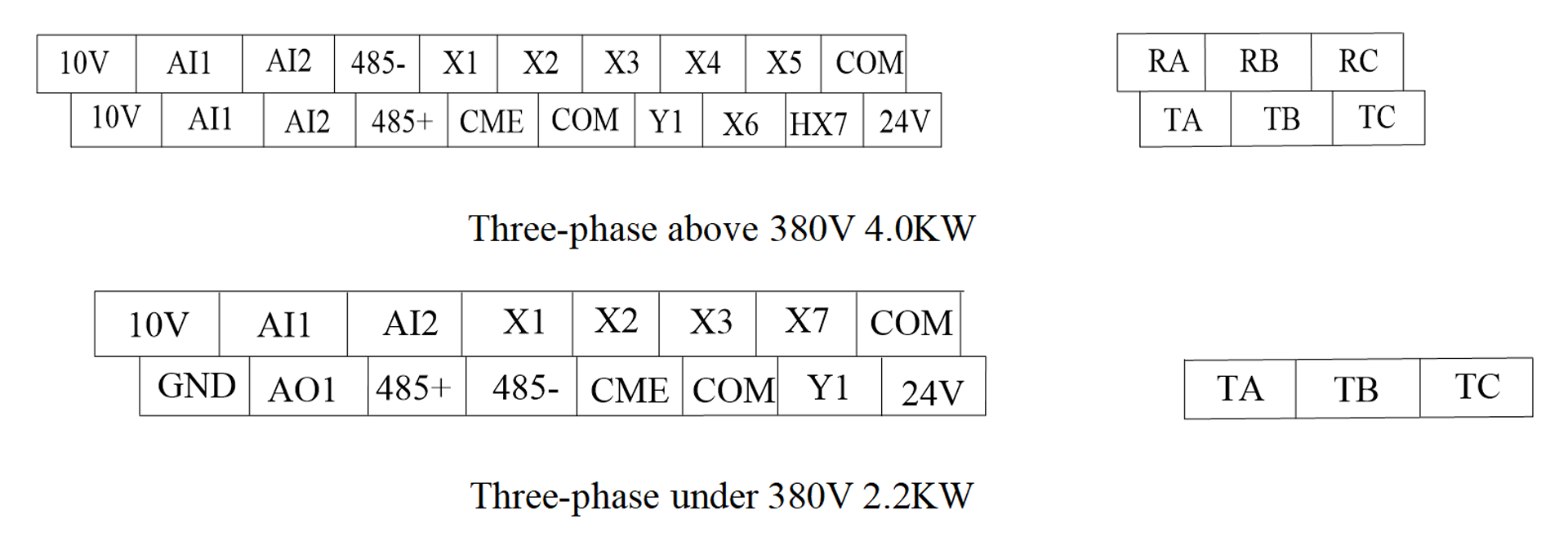

Control circuit terminals and wiring:

VIF550接线端子 1920.png

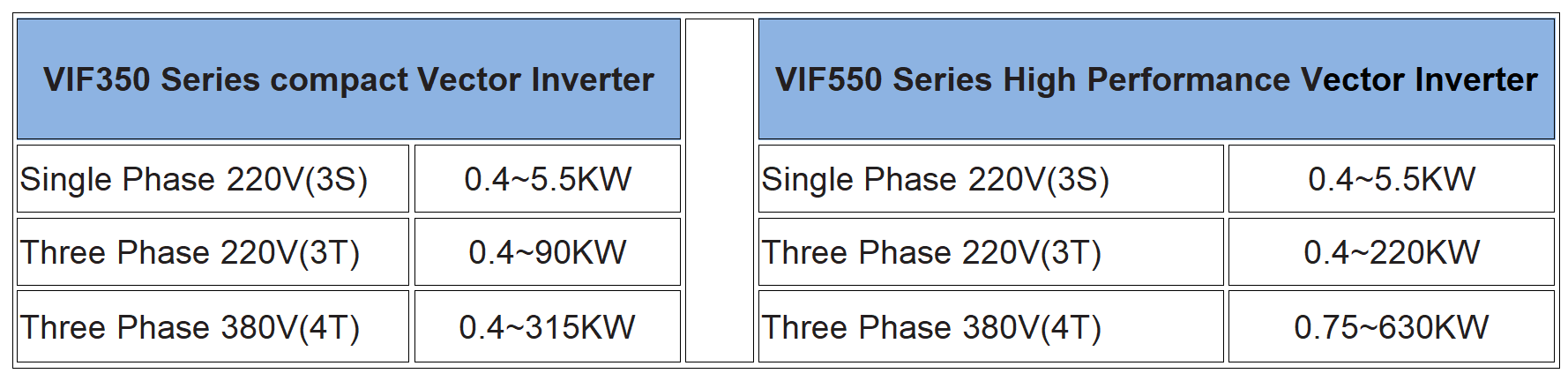

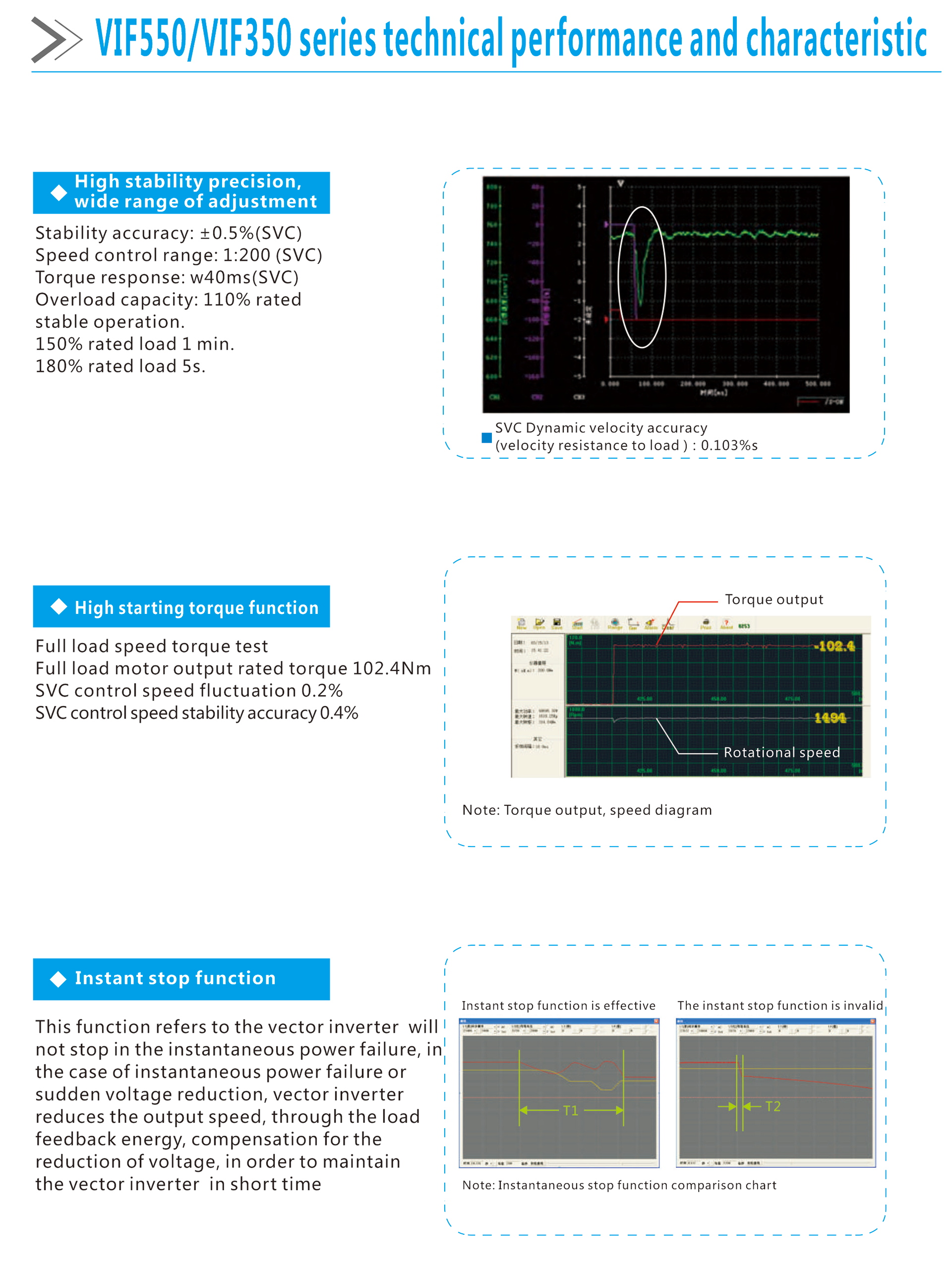

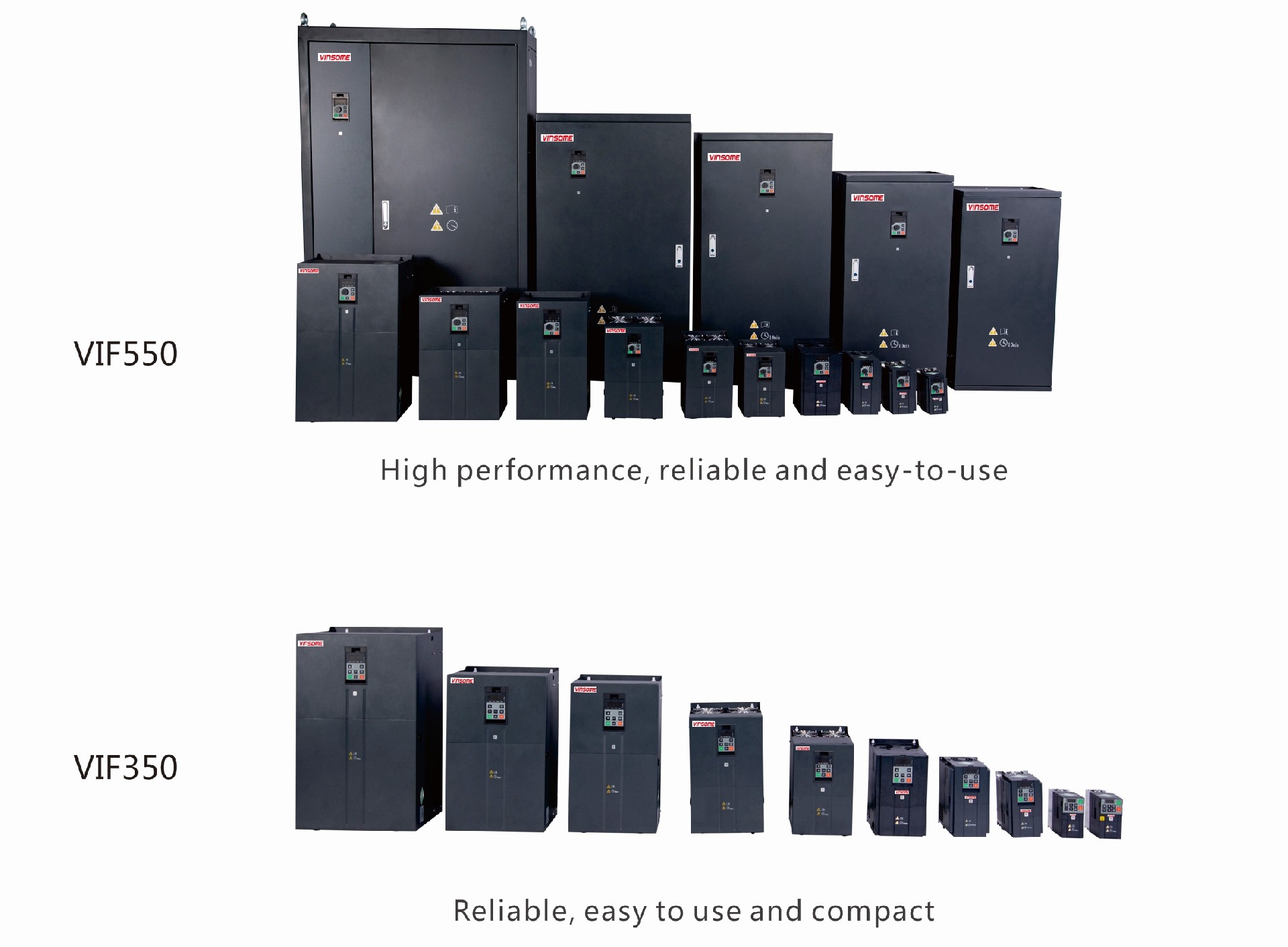

VIF550 Series and  VIF350 Series family:




Inverter 05.png

Inverter 06  1920.png

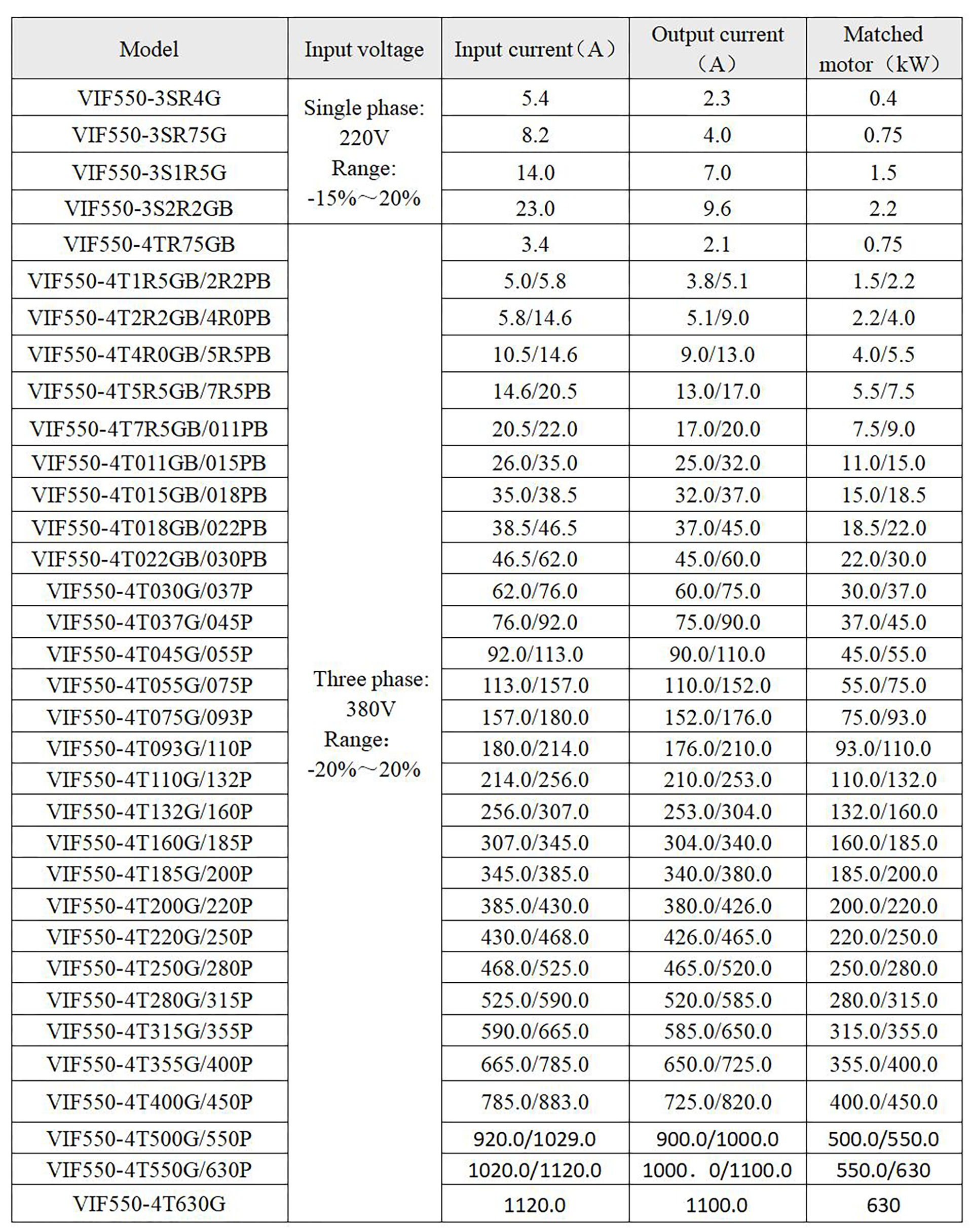

VIF550 Series Vector Inverter  models and technical data:

VIF550 功率和参数表 1920.png

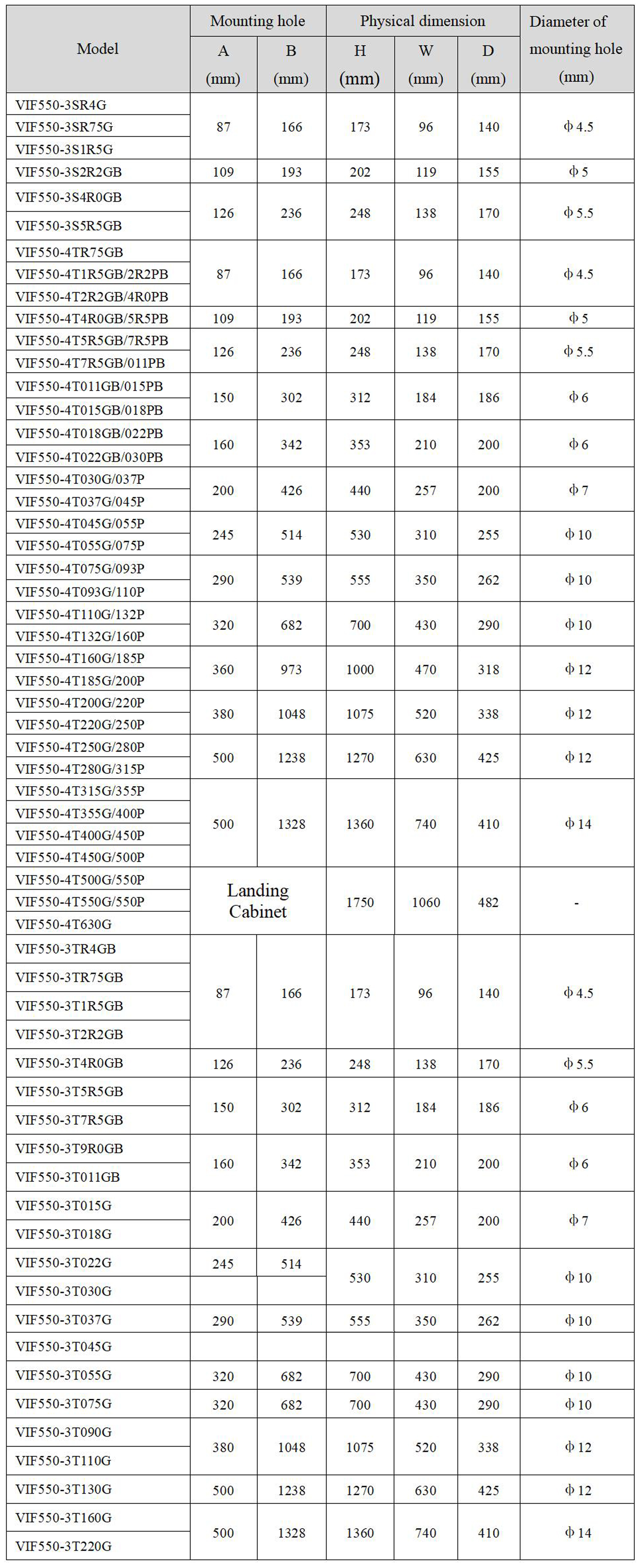

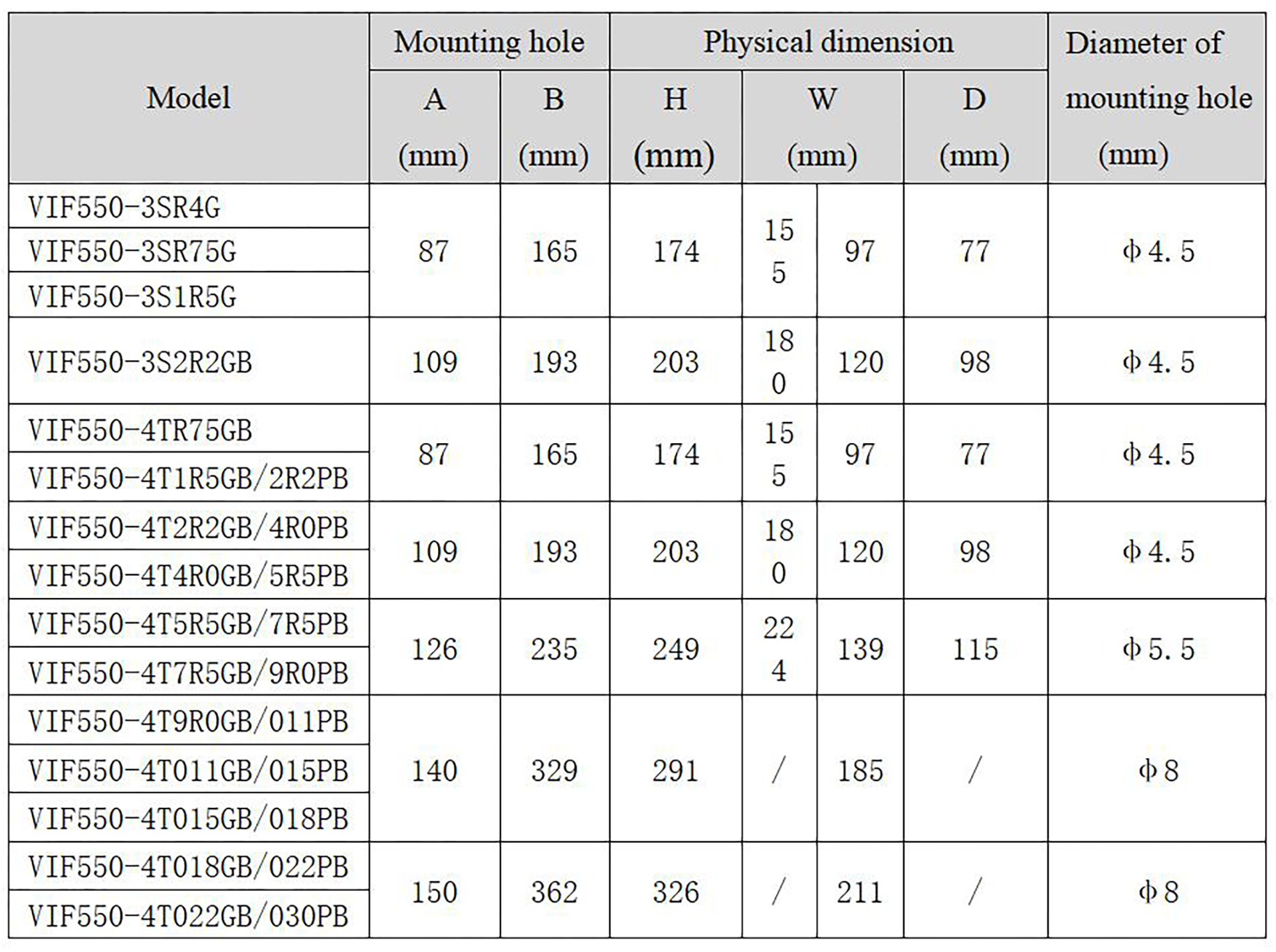

VIF550 Series compact Vector Inverter Mounting Hole Dimensions:

VIF350系列外壳和安装尺寸 1920.png

VIF550 尺寸表 1920.jpg

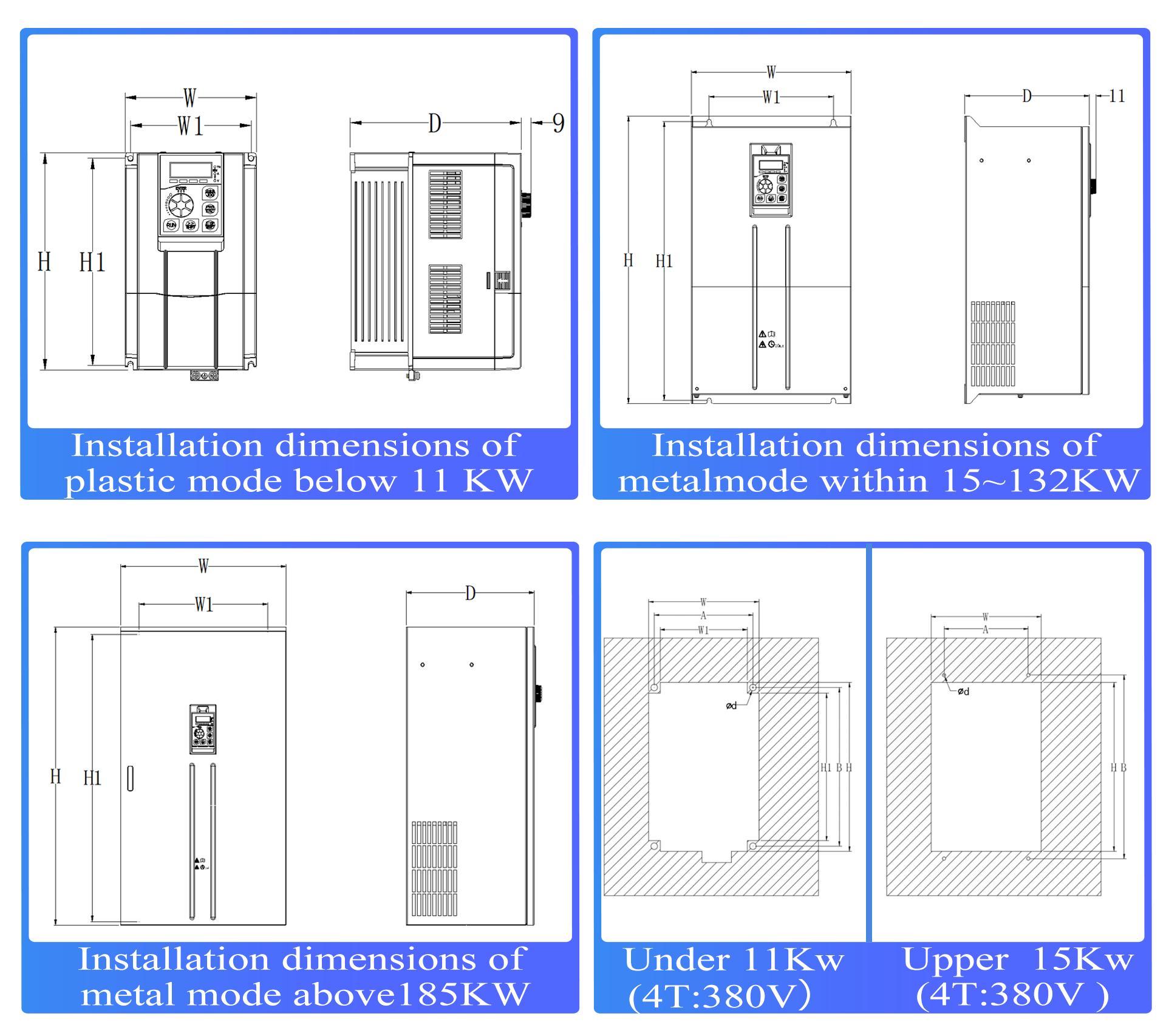

Wall-mounted mode installation dimensions of VIF550 under22KW:

VIF550 壁挂式安装尺寸  1920.png

Inverter 08   1920.png

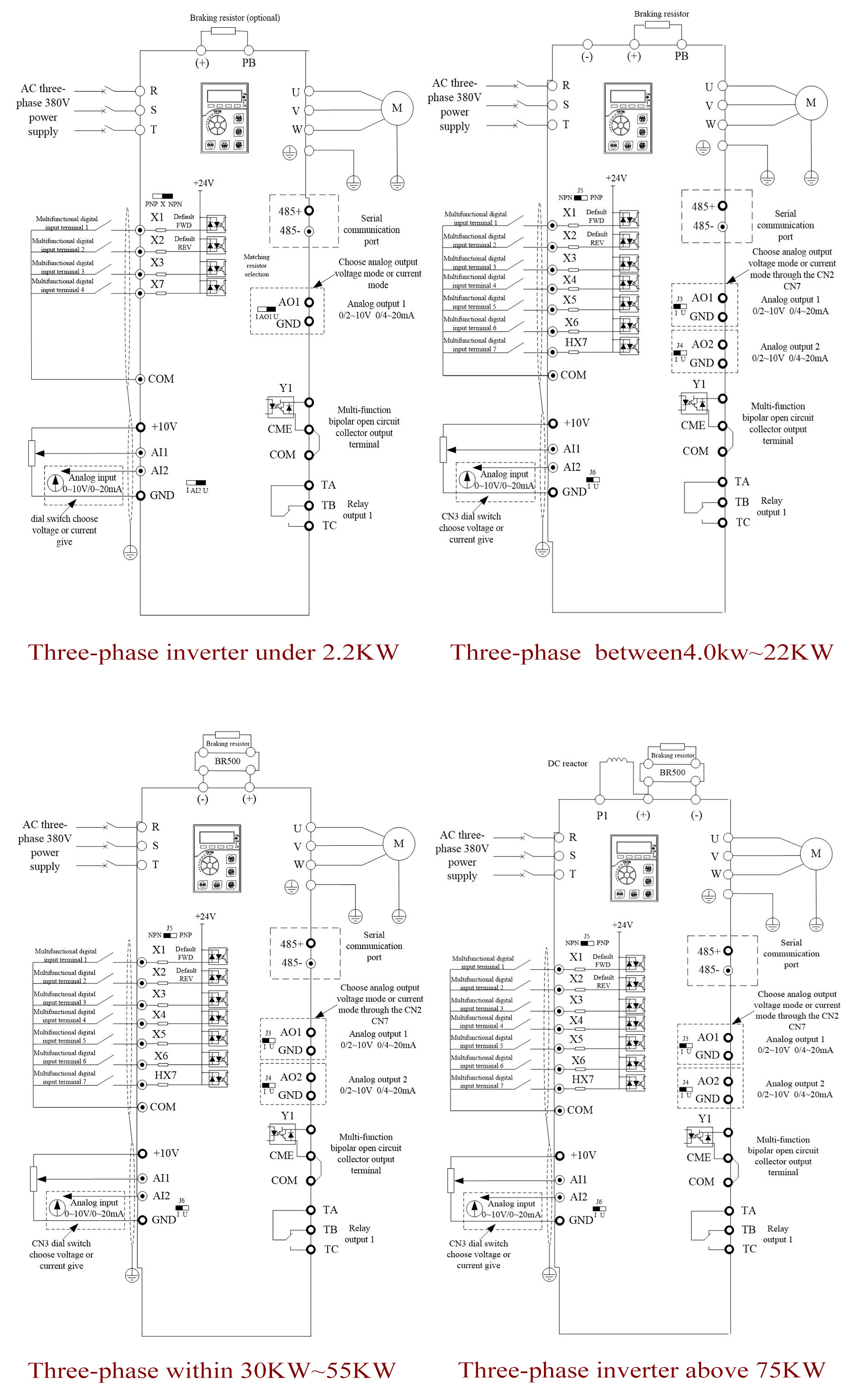

VIF550 Series Typical wiring:

VIF550系列 接线图 1920.png
